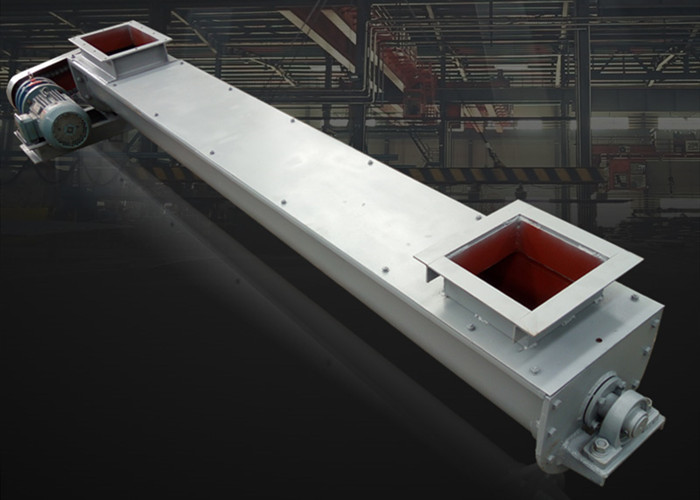

Customized 45 Degree 110TPH Incline Screw Conveyor For Cement
Information of Incline Screw Conveyor
Incline Screw Conveyor is a kind of machinery that uses motor to drive screw rotation and push materials to achieve the purpose of conveying. It can be transported horizontally, obliquely or vertically. It has the advantages of simple structure, small cross-sectional area, good sealing, convenient operation, easy maintenance and closed transportation. Screw conveyor can be divided into shaft screw conveyor and shaftless screw conveyor in conveying form, and U-type screw conveyor and tubular screw conveyor in appearance. The shaft screw conveyor is suitable for cohesionless dry powder materials and small particle materials (such as cement, fly ash, lime, grain, etc.), while the shaftless screw conveyor is suitable for viscous and easy winding materials. (for example: sludge, biomass, garbage, etc.) the working principle of the screw conveyor is that the rotating spiral blade moves the material and carries out the screw conveyor conveying.
Technical parameter of Incline Screw Conveyor
| Model number | LSY140 | LSY160 | LSY200 | LSY250 | LSY300 | LSY400 |
| Screw diameter(mm) | 140 | 163 | 187 | 238 | 290 | 365 |
| Rotating speed(r/min) | 300 | 300 | 260 | 200 | 175/300 | 175 |
| Outer diameter(mm) | 168 | 194 | 219 | 273 | 325 | 402 |
| Max length(m) | 11 | 12 | 13 | 16 | 18 | 18 |
| Incline degree(α°) | 0°~60° | 0°~60° | 0°~60° | 0°~60° | 0°~55° | 0°~55° |
| Conveying capacity(t/h) | 9-17 | 30-20 | 50-32 | 70-53 | 82-60/120-85 | 140-110 |
| Motor | Model | L≤-7 | Y132S-4 | Y132S-4 | Y132M-4 | Y160L-6 | Y180M-4 | Y180M-4 |
| Power(kw) | 5.5 | 5.5 | 7.5 | 11 | 18.5 | 18.5 |
| Model | L>7 | Y132S-4 | Y132M-4 | Y160M-4 | Y180L-6 | Y180L-4 | Y180L-4 |
| Power(kw) | 5.5 | 7.5 | 11 | 15 | 22 | 22 |
How To Get The Price Of Incline Screw Conveyor
1.Are you a factory or a trading company
We are a factory,and you are warmly welcomed to pay an on-site visit!
2.What's the accepted payment term?
T/T L/C Western union,cash and so on.
3.Can you offer the customized solution to my case?
We have R&D team who will handle your case and come up with an ideal solution
4.How long is your lead time for the machines
Normally 20 workdays after the deposit is reached.Nonstandard equipments could be longer depends on certain case
5.Are you engineers available for overseas installation and training matters?
Yes,and all the relative costs should be covered by you
