Transport Lime Stone B650 Belt Incline Conveyor With Hopper
Working principle of Incline Conveyor With Hopper
TD75 Inclined Belt conveyor is composed by two endpoint pulleys and a closed conveyor belt. The pulley that drives conveyor belt rotating is called drive pulley or transmission drum; the other one–only used to change conveyor belt movement direction–is called bend pulley. Drive pulley is driven by the motor through reducer, and conveyor belt dragging relies on the friction drag between the drive pulley and the conveyor belt. The drive pulleys are generally installed at the discharge end in order to increase traction and be easy to drag. Material is fed on the feed-side and landed on the rotating conveyor belt, then rely on the conveyor belt friction to be delivered to discharge end.
Feature of Incline Conveyor With Hopper
1.Strong adaptability to the line.
2.Easy loading and unloading.
3.High reliability.
4.Less maintenance costs.
5.In addition, the belt conveyor also features low operating costs, low capital investment, low energy consumption, and high efficiency.
Application of Incline Conveyor With Hopper
Inclined Belt conveyors are the logistics and transportation machinery widely needed in many industrial sectors. Due to the variety and wide specifications of belt conveyors, inclined conveyor can be applied to the logistics and transportation requirements of chemical, light industry, food, food, building materials, post and telecommunications, and many other departments; inclined belt conveyor can also meet various operations such as docks, storage yards, warehouses, and workshops. Line transportation requirements. Belt conveyors use belts, steel belts, steel fiber belts, plastic belts, and chemical fiber belts as conveyors to transport materials and haul workpieces. Its characteristic is that the conveyor belt that carries the material is also a traction member that transmits power, which is significantly different from other conveyor machinery. It is the most widely used type in continuous conveyors, and it is mainly belt.
Technical Parameters of Incline Conveyor With Hopper
| Carrying idler form | Belt speed(m/s) | Belt width(mm) |
| 500 | 650 | 800 | 1000 | 1200 | 1400 |
| Capacity(t/h) |
| Slot roller | 0.8 | 78 | 131 | | | | |
| 1 | 97 | 164 | 278 | 435 | 655 | 891 |
| 1.25 | 122 | 206 | 348 | 544 | 819 | 1115 |
| 1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 |
| 2 | 191 | 323 | 546 | 853 | 1284 | 1748 |
| 2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 |
| 3.15 | | | 824 | 1233 | 1858 | 2528 |
| 4 | | | | | 2202 | 2996 |
| Roller | 0.8 | 41 | 67 | 118 | | | |
| 1 | 52 | 88 | 147 | 230 | 345 | 469 |
| 1.25 | 66 | 110 | 184 | 288 | 432 | 588 |
| 1.6 | 84 | 142 | 236 | 368 | 553 | 753 |
| 2 | 103 | 174 | 289 | 451 | 677 | 922 |
| 2.5 | 125 | 211 | 350 | 546 | 821 | 1117 |
Selection Conditions of Long Distance Incline Conveyor With Hopper
-
Material to be processed: _____
-
Handling capacity:_____
-
Bulk Density: _____t/m3
-
Material temperature: _____℃
-
Water content:____%
-
Material is corrosive or not: ____
-
Material is sticky or not: ____
-
Working environment temperature: ______ ℃
-
Working voltage:____V_____hz_____phase
Product Tags:
|
|

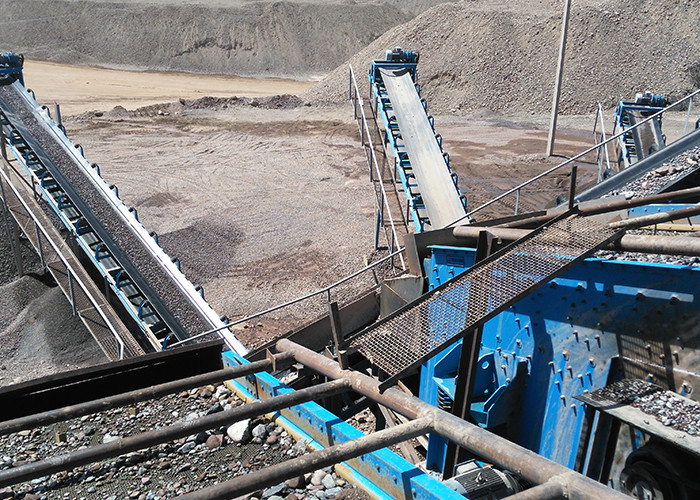

Transport Lime Stone B650 Inclined Belt Conveyor With Hopper Images
|
